LEATHER SEALS

ROTOPRES FELTS

Flexible, and properly utilizing the structure of wool fibers rotopres keçeleriyle leather pattern on the ironing and pressing process at high pressure and temperature the effect is performed. Large and small animal skins ironed machine for printing and design available separately for each brand rotopres properties are produced felts.

Felt Structure: 30% wool, 70% of synthetic fiber cords are manufactured as endless iğnelenerek. Thickness: 10-15 mm Weight: 3000 to 8000 g/m2 Special Applications: Pretensioned environment can be fixed, surface smoothing is done. Recommended Max.pressure: Rotopreslerde 180 bar, super 250 bar presses.



IRON FUR SEALS

Small animal skins used to obtain a bright image ironing felts. Every known brand fully automatic and semi-automatic machines used for ironing fur. Felt Structure: 100% 100% wool and synthetic fibers are manufactured as endless. Thickness: 7-13 mm Recommended Max. Operating Temperature: 250 C





CRIMP SEALS

Cattle and small ruminant animal skin painting, wet processes such as washing after the removal of water is squeezed out with a copy of the two Felt be passed through the felts used in the process. Felt Structure: 30% wool, 70% of synthetic fiber cords are manufactured as endless . Continuous high-pressure-resistant and capable of squeezing. Synthetic structure of the high-powered kordlarla increases the pressure resistance. Thickness: 16-19 mm Weight: 7500 to 8500 g/m2

The key to WET FELTS

More water is squeezed out after the removal of small ruminant animal skins and wet processes are used for the purpose of opening the skin felts. Felt Structure: High-pressure-resistant wool and synthetic fibers and synthetic kordlarla supported is manufactured. Hollow seals dimensional stability, high perfonmans and long working life. Clamping felts with hot water because it is capable of being ıslatıldığında torsion does not shrink and long lasting. Thickness: 16 to 19 mm, weighted: 6000 to 8500 g/m2

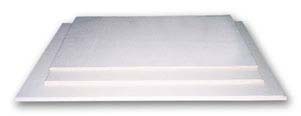

PRESS FELTS

The structure of wool fibers by making use of flexible ironing sheep and cattle skins, skin, and is used baskıişlemlerinde felts. Hydraulic presses and seals placed on the skin are the various forms of printing plates made with the most excellent results are obtained. The most commonly used sizes 80 x Dimensions of 100 x 137 cm 120 cm and felts. Felt Structure: specially selected 100% wool is pressed, traşlanmıştır edges. Thickness: 10 to 24 mm Density: 0.56 to 0.66 gr/cm3





LUBRICANT & SCRAPER SEALS

Import and export features into the liquid used in making use of wool felts felts. Lubrication of moving machine part, and many knives are made by means of wool felts. Blankets of wool felt on the fluid and flexible structure is an ideal product for the purpose of stripping yağlarıda. Felt Structure: 100% wool felt, pressed and calibrated Thickness: 2-25 mm Color: Cream, Gray Density: 0.20 to 0.80 gr/cm3

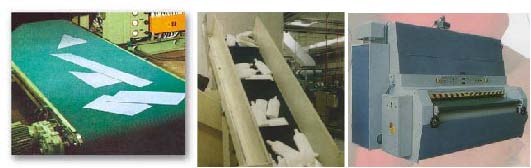

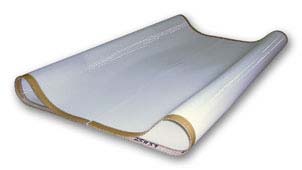

PVC & PU CONVEYOR BELTS

Band Description: Various products used in transportation over reinforced PVC and PU coated synthetic kordlarla conveyor belts. Special Applications: Textile, leather, food, furniture and paper sectors as used in the conveyor belts are made of any desired width and length special. Max. Operating Temperature: 80 C -180 C



Seamless Rolie JEANS BELTS

Tape Features: 2 and 3 as the cords are made of special rubber that to the best of various hardnesses. Oil, solvent-resistant and paraffins. Standard hardness shore'dur 32-36. 18-20 shore rubber is used for special applications. Tape Thickness: edilebilmekle manufactured with any thickness of 10-14 mm standard thickness.

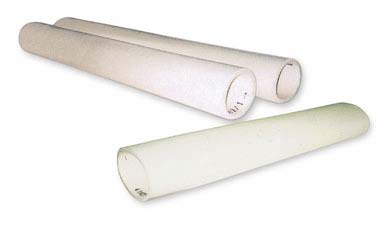

GRINDING MACHINE RUBBERS

Sanded the inside of the skins of sheep and cattle waste and sanding machines are used in handling of oils to the skin to support finished products made of tubular rubber. Sleeve features: up to 3300 mm width can be manufactured in the desired range. Work according to skin type and the various pore types are manufactured in various hardnesses. Standard hardness 14-24 shore'dur



CHAIN POLYESTER TAPES



Tape Specifications: polyester chain form is produced. The chain is in the form of air permeability and vacuum properties are required to be used. Special pins are made with the infinite. Thickness: 2 mm Max. temperature resistance: 160 C
